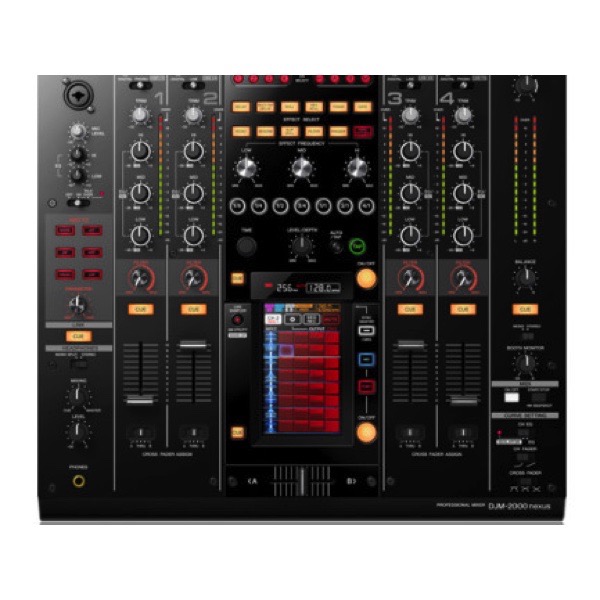

Pioneer DJM-2000nexus

The intuitive layout makes performance a breeze and facilitates original arrangement to music.

The interface has been placed in the center of the mixer to enable an individual, intuitive performance. A DJ can add arrangements to the music with a variety of controls, such as Tap, Warp and Trace on the three Effect sections. And the three Effect sections can be used in combination, giving the DJ all the more scope for original arrangements.

• Four New Performance Modes using the 5.8 inch Full-Color, Multi-touch Display

We’ve adopt a 5.8 inch large LCD multi-touch panel display. So the DJ can see and hear the result of effects, while easily and intuitively operating the mixer like none before, and we’ve added 4 kinds of performance modes. The BEAT SLICE REMIX, creating new track slices, the SIDECHAIN REMIX, with its seven kinds of dynamic effects, the FREQUENCY MIX, enabling a more precise music mix, and the four types of MIDI mode that allow the DJ to use a computer-all making every DJing scene and DJ playing style possible.

The mixer is equipped with a USB Audio Interface, which allows the audio signal of music playing on a computer to be input to the DJM-2000nexus via a USB connection with the computer*6. This makes it possible to use a computer, even without an external sound card, for DJ play. From one computer up to a maximum of four sources of audio signal can be assigned to each channel and mixed. It is also possible to choose to output the audio out of the master channel to the computer. This makes it extremely convenient to record the mixed audio*7.

Newly developed peak limiter that allows playback while limiting track distortion, even at high audio volumes

The mixer comes with a new peak limiter that allows playback of master output tracks while limiting distortion, even at maximum output sound levels. This prevents delays in the output audio, while limiting track distortion naturally without affecting the powerful rhythms of tracks.

High-durability channel fader used for non-stop smooth operations

A high-performance channel fader has been used to improve durability. This ensures smooth operations even in the demanding surroundings of a club.

Advanced design that matches the professional CDJ-2000nexus model

Chrome-plating has been applied to knobs used for adjusting effect frequencies, and a white LED has been used for the beat button used to control beat effects. The look matches that of the CDJ-2000nexus system when they are placed side-by-side, while designed with an advanced appearance.
Other functions

• LAN terminals for connecting up to 4 multiple players*2 and up to 2 PCs at the same time.

• Built-in USB audio interface that can assign audio systems of up to 4 systems to each channel from a single PC.

• Switchable 3 band EQ and 3 band ISOLATER on each channel (control from +6 dB to -26 dB with EQ, and +6 dB to -∞ dB with ISOLATER).

• Digital input terminals on each channel that allow audio signals to be input without affecting sound quality.

• “Talk Over” that lowers the volume of tracks automatically when there is a signal input via the microphone.

• “Peak Level Meter” on all channels that allow the input level input to each channel to be checked in an instant.

• “Cross Fader Assign” to assign cross faders flexibly to each channel input.

• “Fader Curve Adjust” function that allows the cross fader and channel fader curve to be changed.

• Environmentally-friendly “Auto Standby Function” that switches the power to standby mode when there is no operation or input for a certain period of time.

• Pioneer DJ CD player can be used for fader, start or play functions via a link to the fader control using a PRO DJ LINK connection*2 or a control cable.

• Convenient for club or studio as it is 19-inch rack mount ready (Meets EIA standards).*8

• Support

Main specifications of DJM-2000nexus

• No. of Channels:Audio 4-channels, Mic 1-channel

• Input Terminals:CD/LINE × 6(RCA) , PHONO × 2(RCA) , DIGITAL IN × 4(COAXIAL) , MIC × 1(On top, XLR & 1/4-inch general-purpose phone × 1)

• Output Terminals :MASTER OUT × 2(RCA × 1, XLR × 1), BOOTH OUT × 1(1/4 inch PHONE) , HEADPHONE MONITOR OUT × 1 (On top, 1/4 inch PHONE) ,

• REC OUT × 1(RCA) , DIGITAL OUT × 1(COAXIAL)

• Other Terminals:SEND × 1(1/4 inch PHONE) , RETURN × 1(1/4 inch PHONE) , MIDI OUT × 1(5P DIN) , CONTROL × 2 ( 3.5 MINI JACK) ,

• USB B Port × 1 , LINK Port × 6

•  Sampling Rate:96 kHz

• D/A Converter:32bit

• A/D Converter:24 bit

• Frequency Performance:20 Hz ~20 kHz

• Total Harmonic Distortion:0.004% or less

• Signal/Noise Ratio:107 dB(LINE)

• Headroom:19 dB

• Power Consumption:40 W

• Max External Dimensions:430 mm (W) × 404 mm (D) × 107.9 mm (H)

• Weight :8.6 kg
